- Feature
- Description
- Model

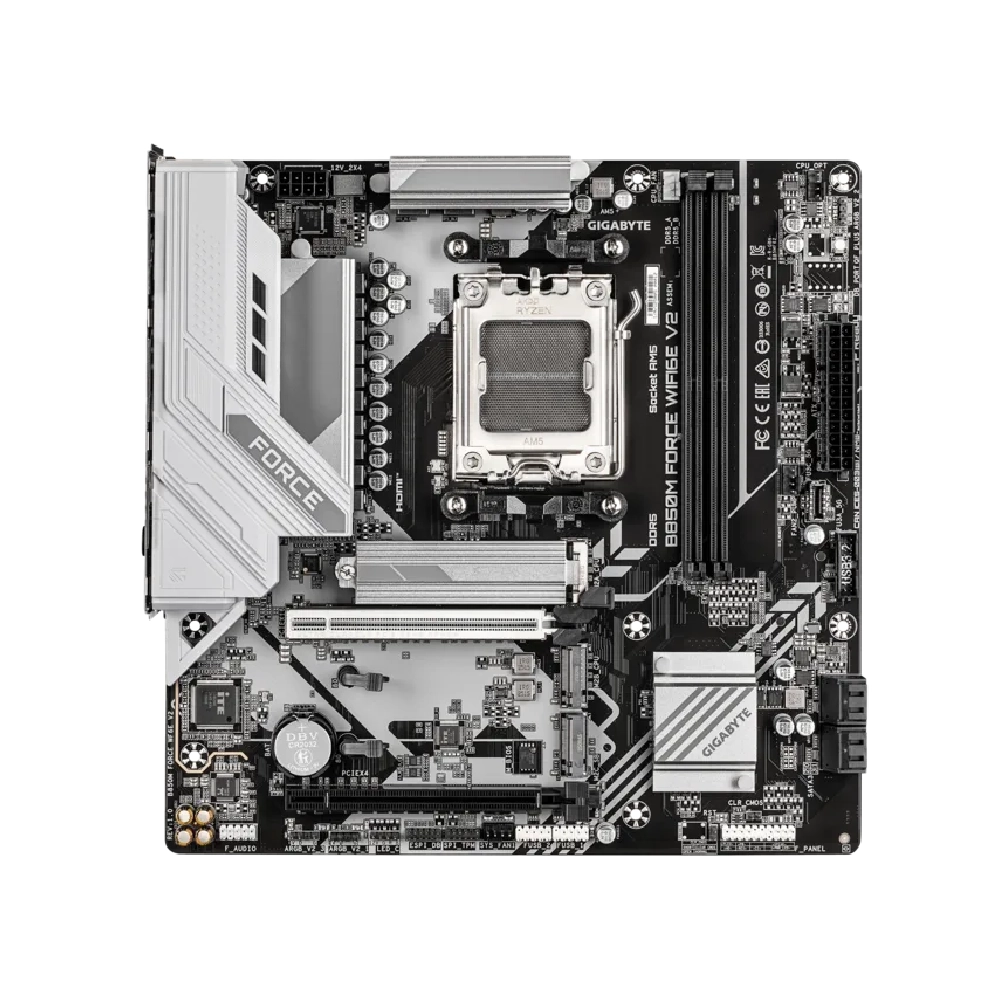

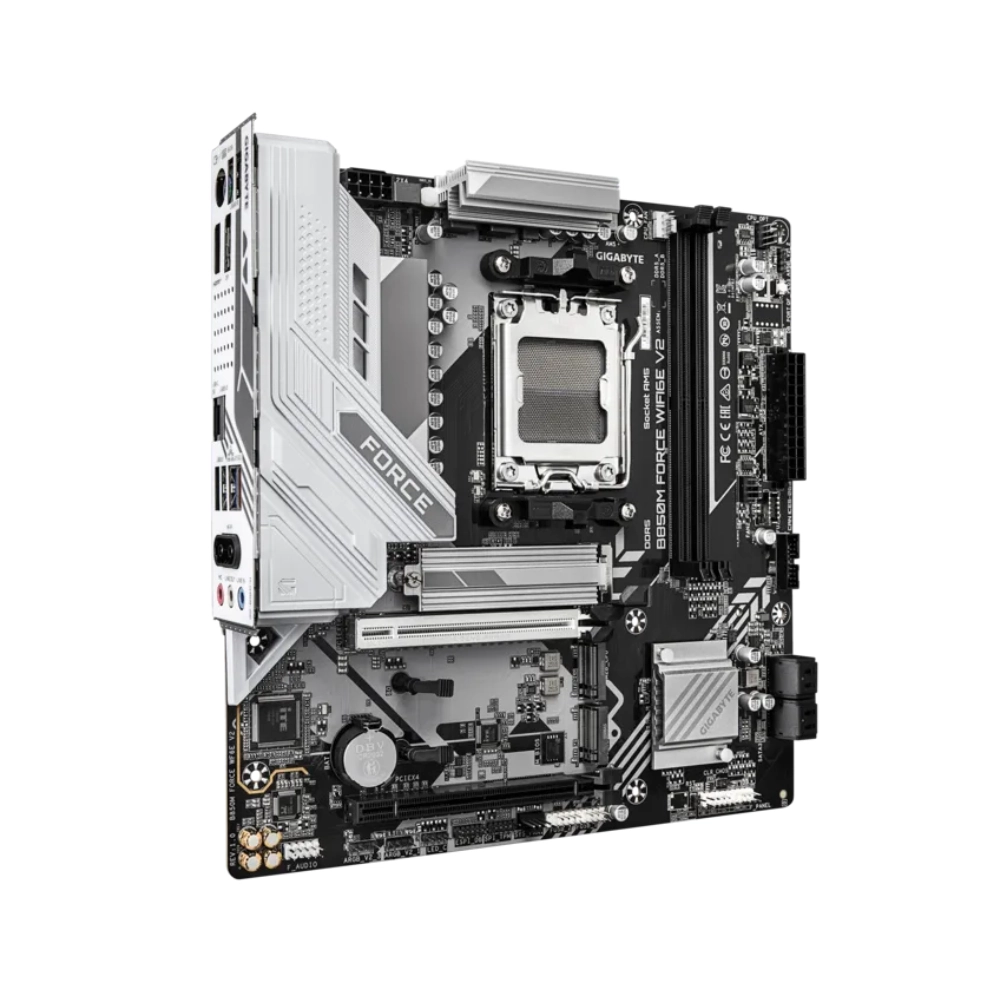

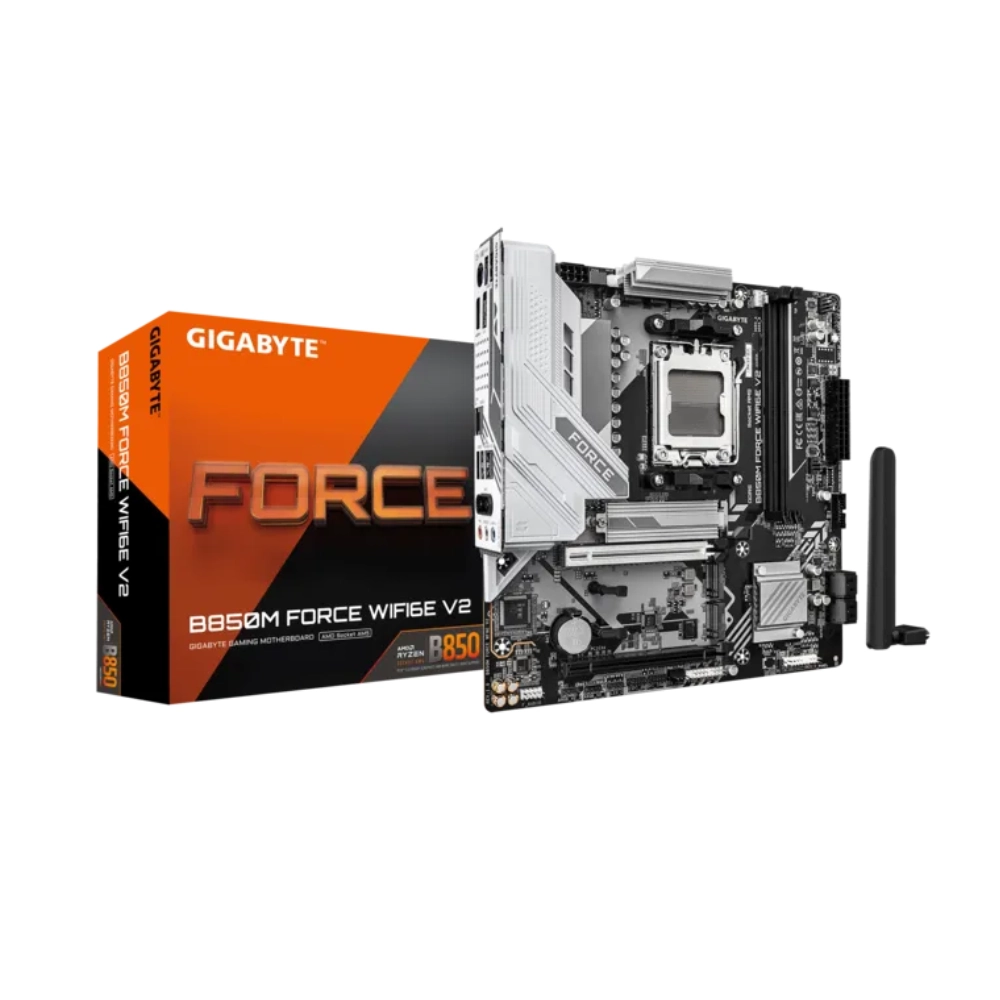

- Gigabyte B850M FORCE WF6E V2
- CPU Support
- AMD AM5 Socket | Ryzen 9000 / 8000 / 7000 Series
- Chipset
- AMD B850
- Memory
- 2 x DDR5 Slots | Up to 128GB | 9600MHz (OC)
- Memory Support
- EXPO & XMP | Non-ECC UDIMM
- Graphics Output
- HDMI 2.1 (4K@60Hz) | DisplayPort 1.4 (4K@144Hz)
- Audio
- Realtek HD Audio | 7.1 Channel
- LAN
- Realtek 2.5GbE LAN
- Wireless
- Wi-Fi 6E | Bluetooth 5.3
- Expansion Slots
- 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x4
- Storage
- 3 x M.2 (PCIe 5.0/4.0) | 4 x SATA
- RAID Support
- NVMe: RAID 0/1/5/10 | SATA: RAID 0/1/10
- USB Ports
- USB-C | USB 3.2 Gen2 | USB 3.2 Gen1 | USB 2.0
- Internal Connectors
- RGB Headers | USB Headers | TPM | Q-Flash Plus

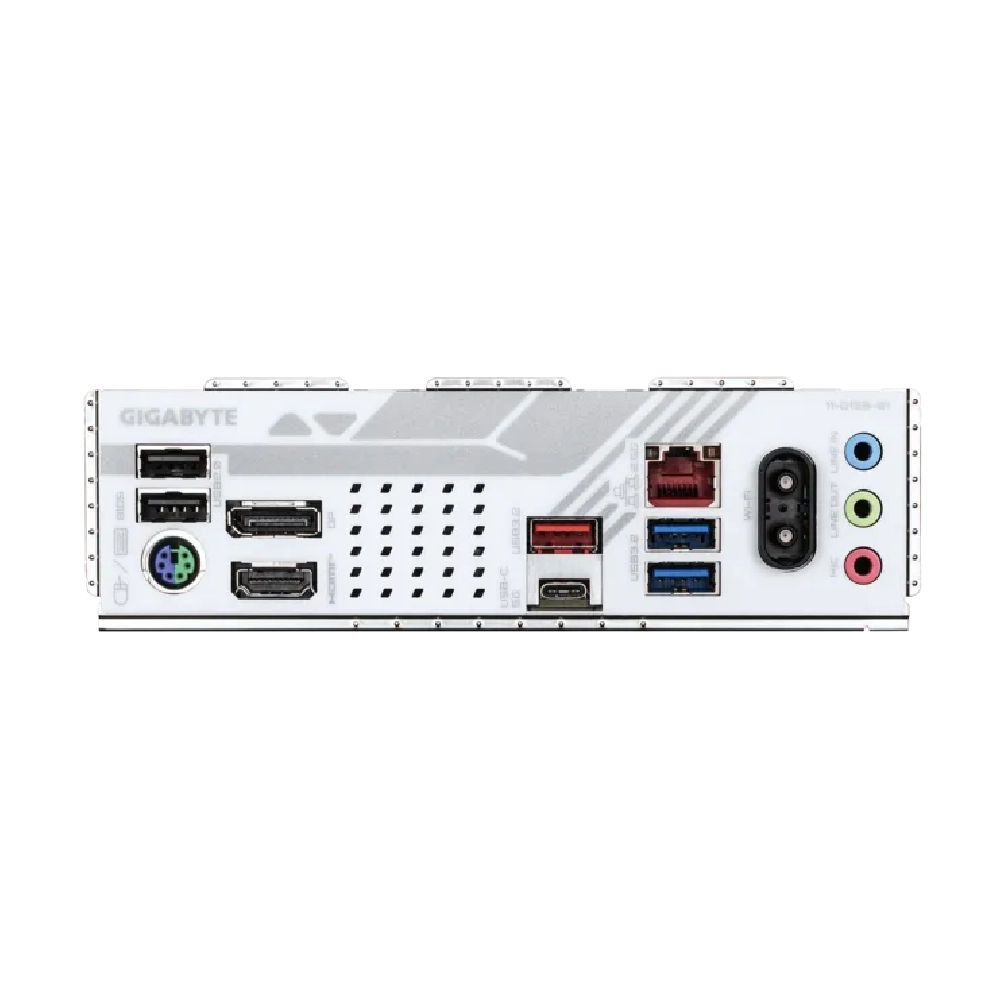

- Back Panel
- HDMI | DP | USB-C | USB-A | LAN | Audio | PS/2
- BIOS
- AMI UEFI BIOS | Q-Flash | Smart Backup
- Software
- Gigabyte Control Center (GCC)
- OS Support
- Windows 11 / Windows 10 (64-bit)
- Form Factor
- Micro ATX
