- Specifications
- Details
- CPU
- AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series
- Chipset
- AMD B650
- Memory
- 4 x DDR5 DIMM, up to 256 GB, DDR5 8000(OC)~4400 MT/s, Dual Channel, AMD EXPO & XMP supported
- Graphics
- 1 x DisplayPort (3840x2160@144Hz), 1 x HDMI (4096x2160@60Hz), CPU-dependent
- Audio
- Realtek® Audio CODEC, 7.1-channel, S/PDIF Out
- LAN
- Realtek® 2.5GbE LAN
- Wi-Fi / Bluetooth
- Wi-Fi 6E + BT 5.2 (RZ616 PCB rev 1.0) / Wi-Fi 6E + BT 5.3 (AX210 PCB rev 1.1)
- PCIe Slots
- 1 x PCIe x16 (CPU), 1 x PCIe x16 (x4, Chipset), PCIe 4.0/5.0 (CPU dependent)
- Storage
- 2 x M.2 (PCIe 5.0/4.0), 4 x SATA 6Gb/s, RAID 0/1/10 support
- USB Ports
- 1 x USB-C Gen2, 2 x USB 3.2 Gen2, 5 x USB 3.2 Gen1, 8 x USB 2.0
- Internal Connectors
- 24-pin ATX, 8-pin CPU, fan headers, RGB headers, USB headers, TPM, etc.

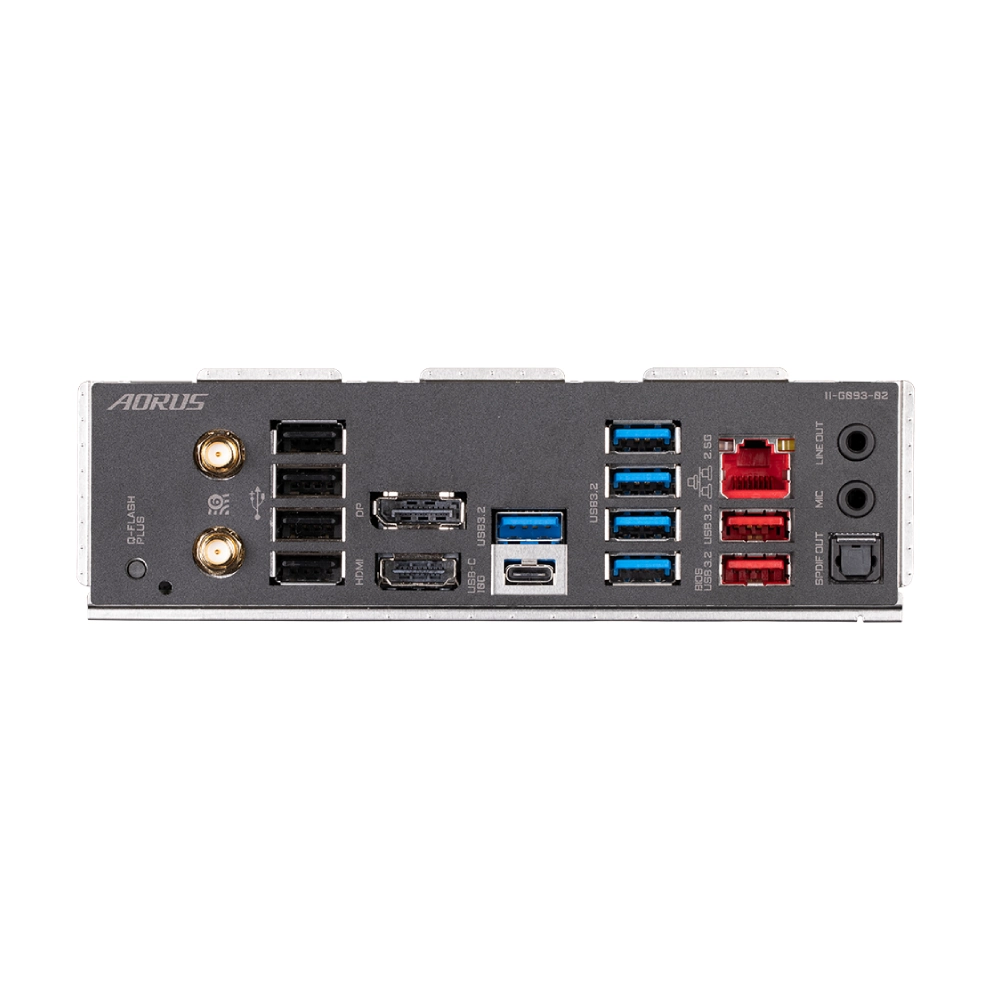

- Back Panel
- DisplayPort, HDMI, USB-C, 7 x USB-A, LAN, SPDIF, audio jacks, antenna connectors
