- Category
- Details
- CPU
- Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz), 1 MB Cache * Do not disassemble the onboard SoC and heatsinks to avoid damage.
- Memory
- 2 x DDR3 DIMM sockets, up to 8 GB Dual channel architecture Supports DDR3/-L 1333 MHz non-ECC modules * Windows 32-bit may display less than 4 GB installed memory.
- Onboard Graphics
- D-Sub: Max 2560x1600 HDMI: Max 1920x1080
- Audio
- Realtek® ALC887 codec, HD Audio 2/4/5.1/7.1-channel support (7.1 requires HD front panel module) Supports S/PDIF Out
- LAN
- Realtek® GbE LAN chip (10/100/1000 Mbit)
- Expansion Slots
- 1 x PCI Express x16 slot (runs at x1) 1 x PCI Express x1 slot 1 x PCI slot
- Storage Interface
- 2 x SATA 3Gb/s connectors
- USB
- 1 x USB 3.0/2.0 (rear) 8 x USB 2.0/1.1 ports (4 rear, 4 via headers)
- Internal I/O Connectors
- - 24-pin ATX main power connector - 4-pin ATX 12V power connector - 2 x SATA connectors - CPU fan header, system fan header - Front panel & audio headers - S/PDIF Out header - 2 x USB 2.0 headers - 2 x serial port headers - TPM header - Clear CMOS jumper

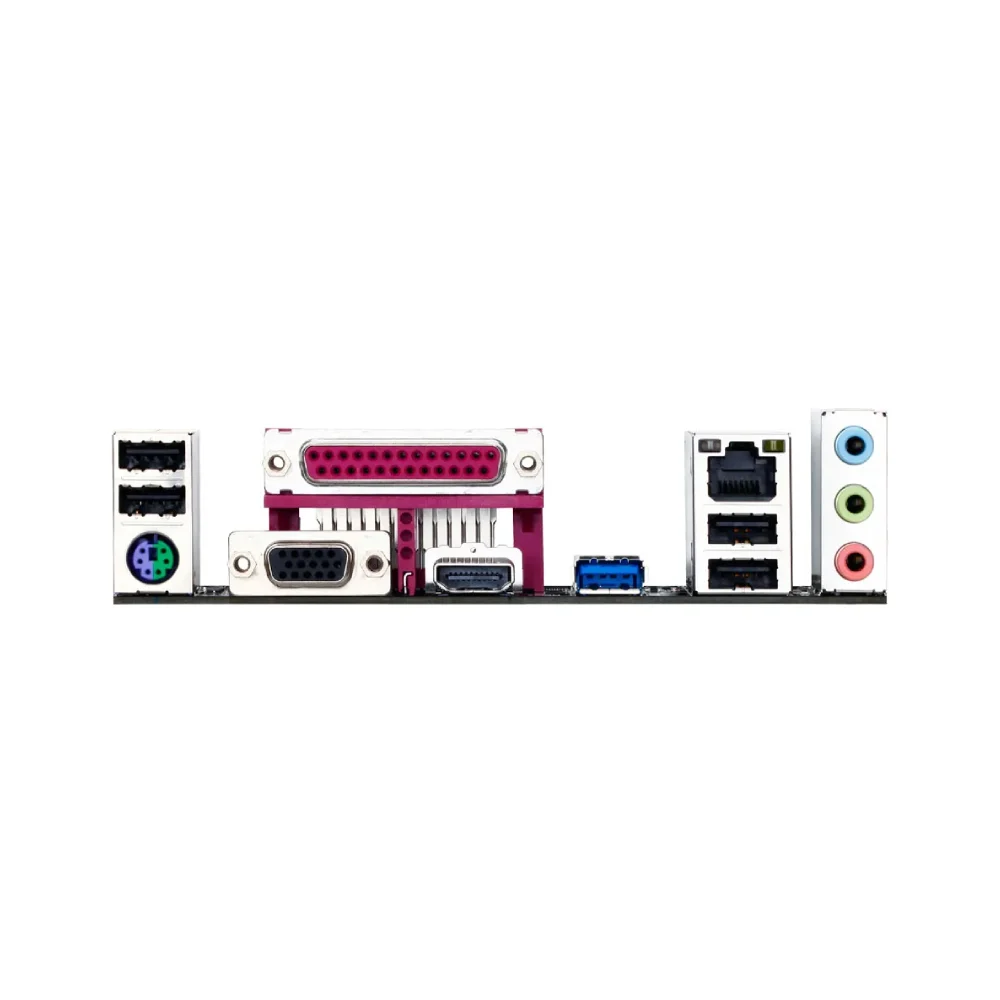

- Back Panel Connectors
- - PS/2 keyboard/mouse port - D-Sub & HDMI ports - Parallel port - 1 x USB 3.0/2.0 - 4 x USB 2.0 - RJ-45 LAN port - 3 x audio jacks (Line In, Line Out, Mic In)
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- - Voltage, temperature, fan speed detection - CPU/System fan speed control * Fan control depends on cooler support
- BIOS
- 64 Mbit AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- - Xpress Install, @BIOS - APP Center support (*applications vary by model) - ON/OFF Charge
- Bundle Software
- Norton® Internet Security (OEM), Intel® Smart Connect Technology
- Operating System
- Windows 10 / 8.1 / 8 / 7
- Form Factor
- Micro ATX, 22.6 cm x 18.0 cm
