- Model
- PRIME H510M-E R2.0
- CPU
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset
- Intel® H470 Chipset
- Memory
- 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported configurations vary depending on CPU type. Visit ASUS Support for details.
- Graphics
- 1 x DisplayPort 1.4** 1 x VGA 1 x HDMI™ 2.1*** ** DisplayPort and HDMI specifications vary based on CPU type.
- Expansion Slots
- 1 x PCIe 4.0/3.0 x16 slot (based on CPU generation) 2 x PCIe 3.0 x1 slots
- Storage
- 1 x M.2 slot (PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
- Ethernet
- 1 x Realtek 1Gb Ethernet
- USB
- Rear USB: 4 x USB 3.2 Gen 1, 2 x USB 2.0 Front USB: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC* * A chassis with an HD audio module is required for 7.1 surround sound.

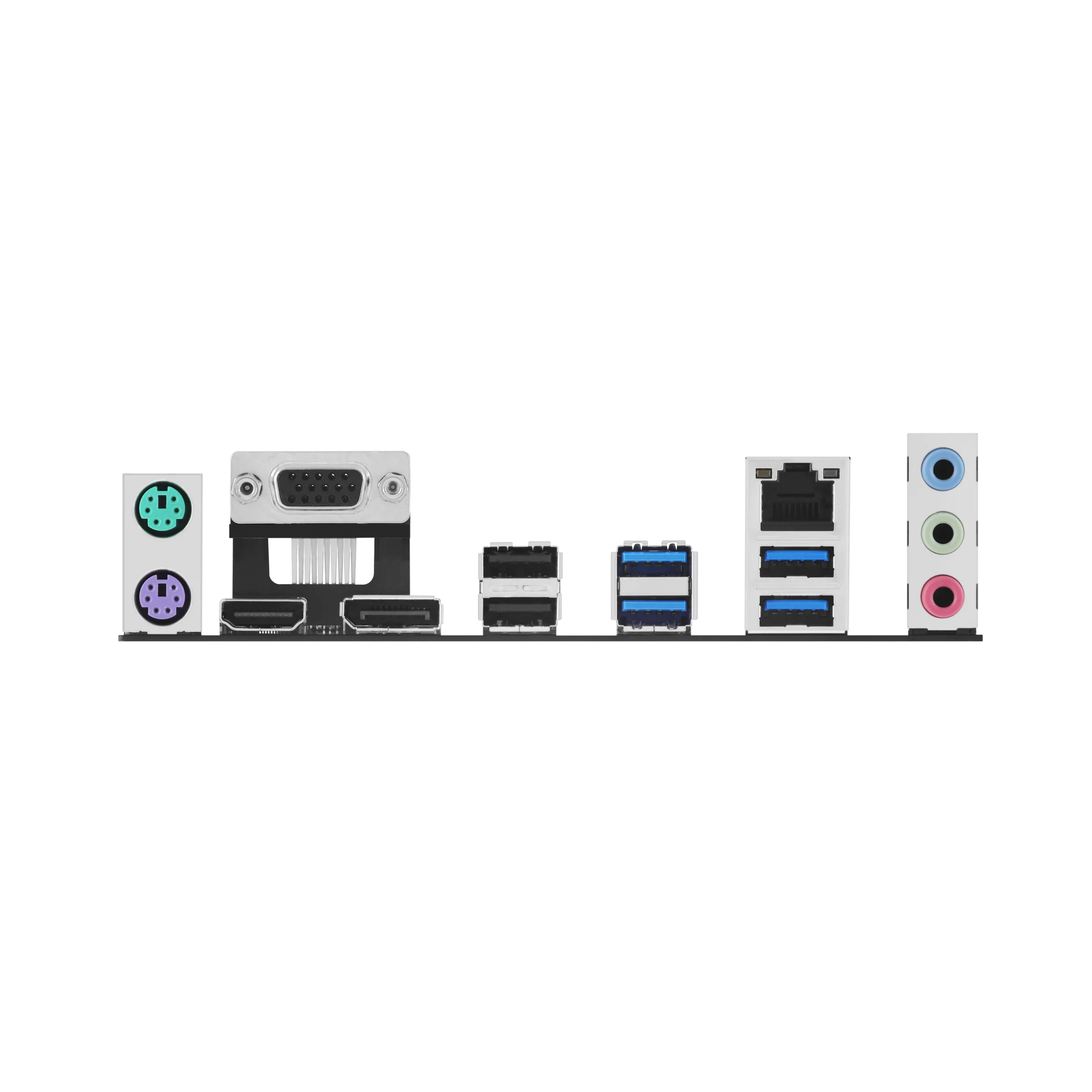

- Back Panel I/O Ports
- 4 x USB 3.2 Gen 1, 2 x USB 2.0 1 x DisplayPort, 1 x VGA, 1 x HDMI™, 1 x Realtek 1Gb Ethernet 3 x Audio jacks, 1 x PS/2 Keyboard port, 1 x PS/2 Mouse port
- Internal I/O Connectors
- 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers Additional connectors include AURA RGB headers, TPM header, and more.
- Special Features
- ASUS 5X PROTECTION III, Q-Design, Thermal Solution AURA Sync RGB and Addressable Gen 2 RGB headers
- Software Features
- ASUS Exclusive Software: Armoury Crate, AI Suite 3, Fan Xpert, and more. Norton 360 Deluxe (60 Days Free Trial), WinRAR
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS

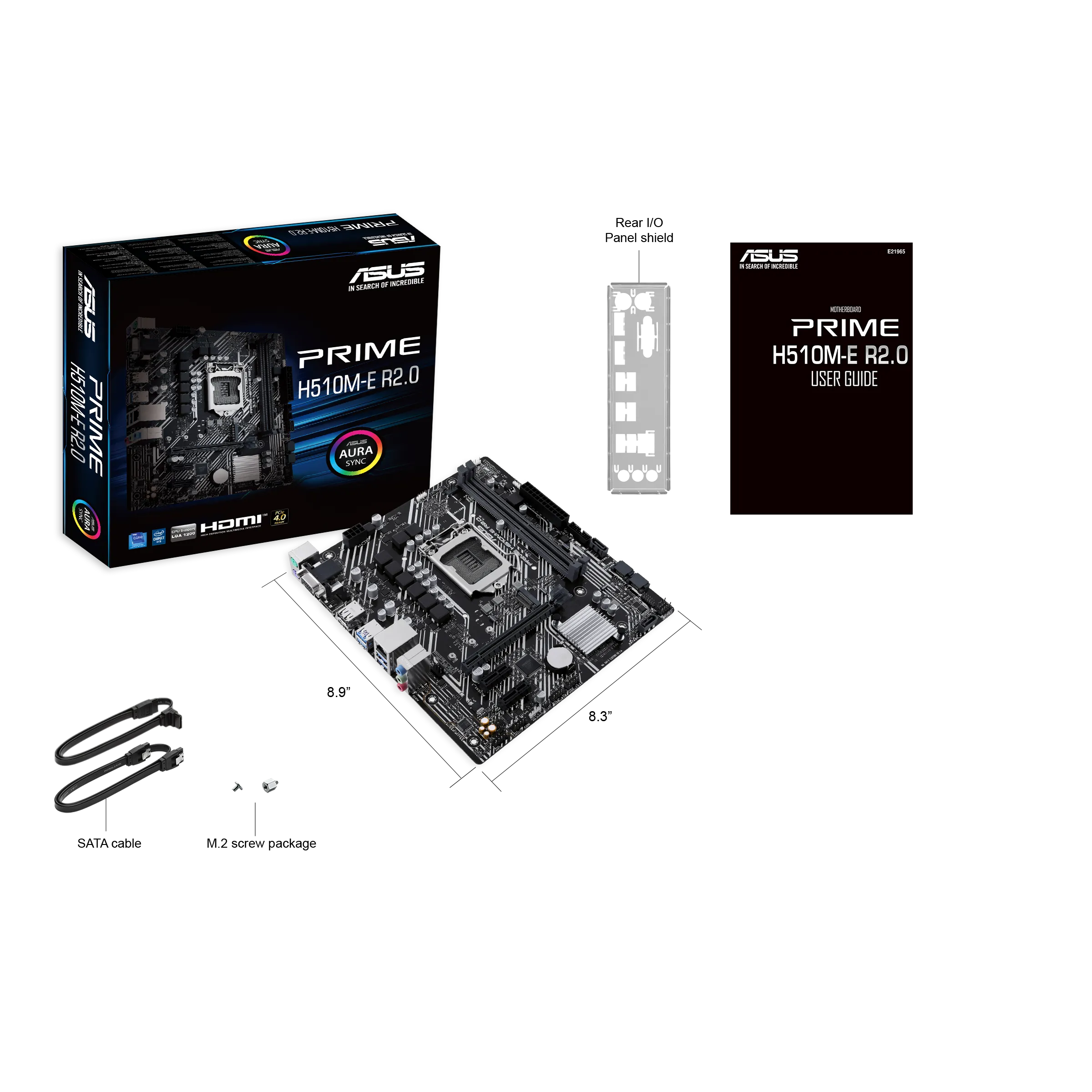

- Accessories
- 2 x SATA cables, 1 x I/O Shield, 1 x M.2 SSD screw package, User guide
- Operating System
- Windows® 10 64-bit
- Form Factor
- mATX (8.9 x 8.3 inches / 22.6 x 21.1 cm)
