- Main Point
- Details
- Model

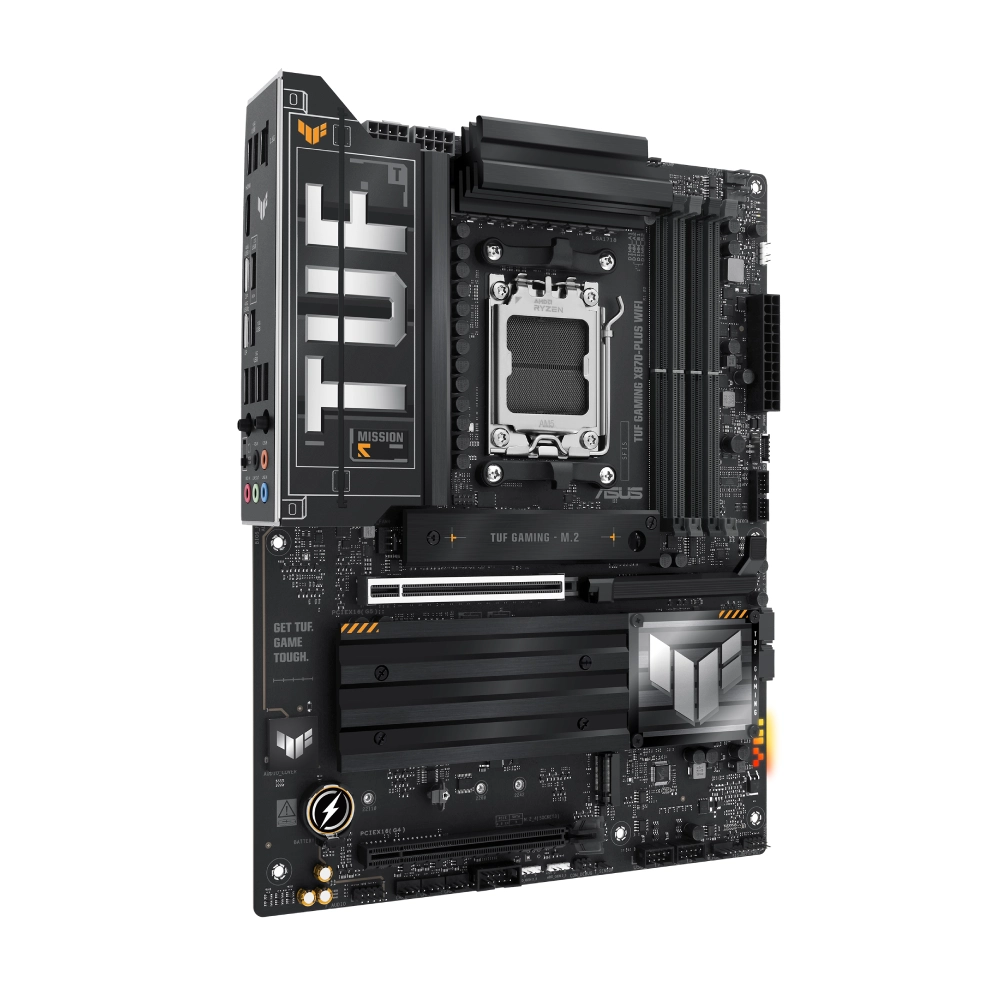

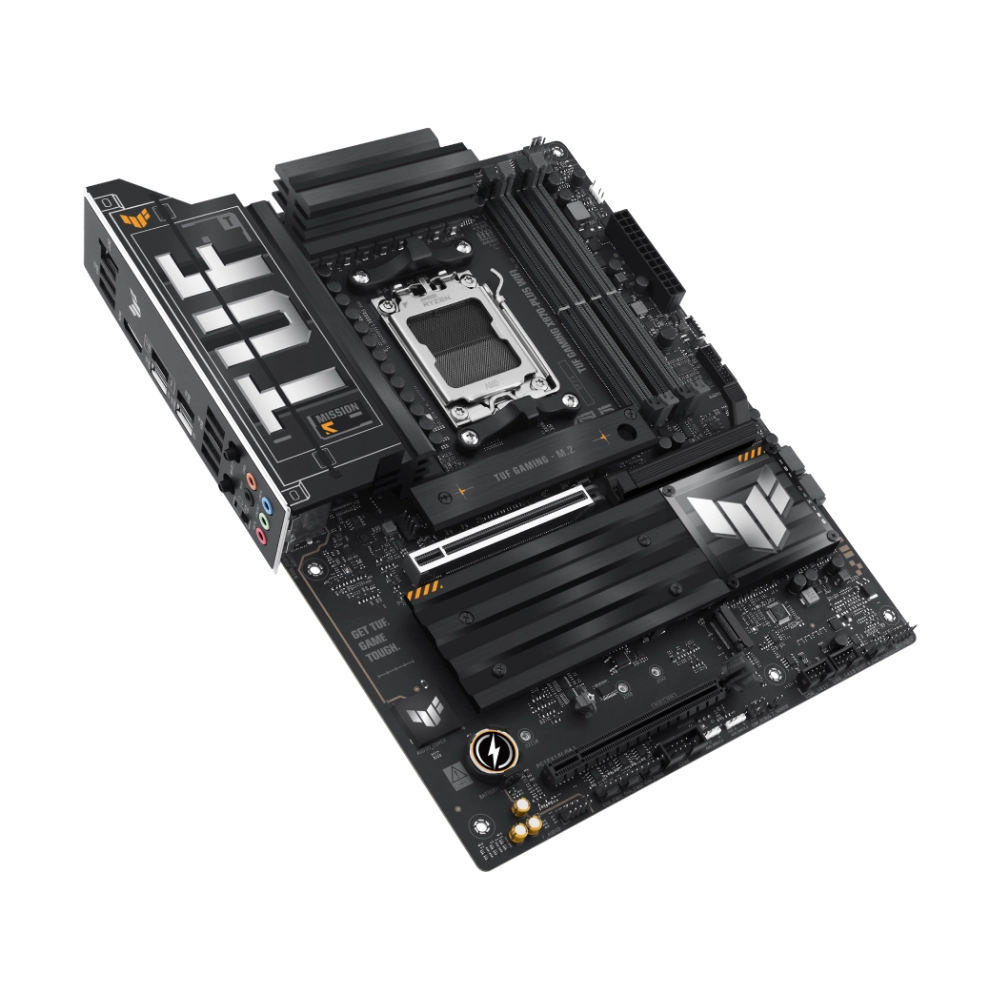

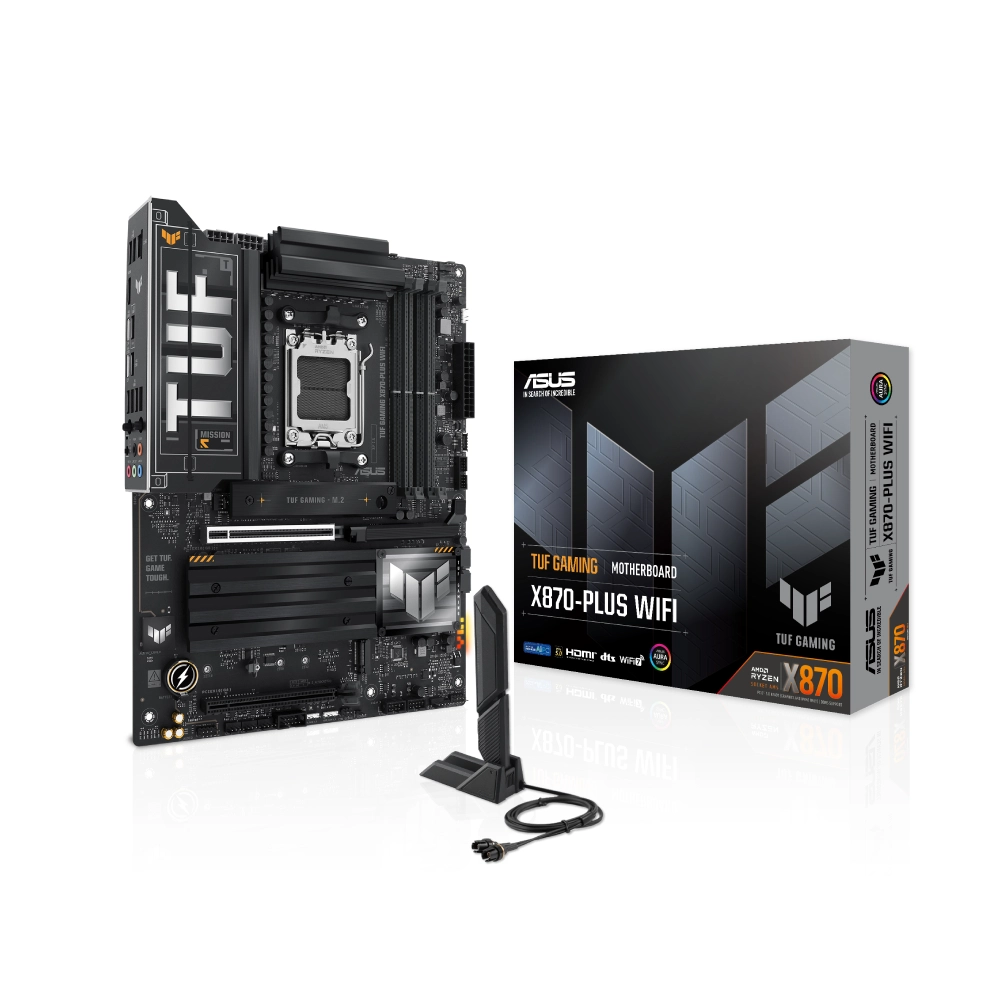

- TUF GAMING X870-PLUS WIFI
- CPU
- AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series
- Chipset
- AMD X870
- Memory
- 4 x DIMM, up to 256GB DDR5, 8000+ MT/s (OC), Dual Channel, EXPO™, AEMP
- Graphics
- 1 x HDMI, 2 x USB4® Type-C® display outputs
- Audio
- Realtek ALC1220P 7.1 Surround Sound, 120 dB SNR playback, 113 dB recording
- LAN
- Realtek 2.5Gb Ethernet, TUF LANGuard
- Wi-Fi / Bluetooth
- Wi-Fi 7 (2x2, 2.4/5/6GHz), Bluetooth® v5.4
- PCIe Slots
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (chipset)
- Storage
- 4 x M.2 slots (PCIe 5.0/4.0), 2 x SATA 6Gb/s ports
- USB Ports
- Rear: 2 x USB4, 3 x USB 10Gbps, 4 x USB 5Gbps, 1 x USB 2.0; Front: 1 x USB 20Gbps Type-C, more via headers
- Internal Connectors
- 4 x M.2, 2 x SATA, multiple fan headers, USB headers, RGB headers, Clear CMOS, Thermal sensor, Front panel audio

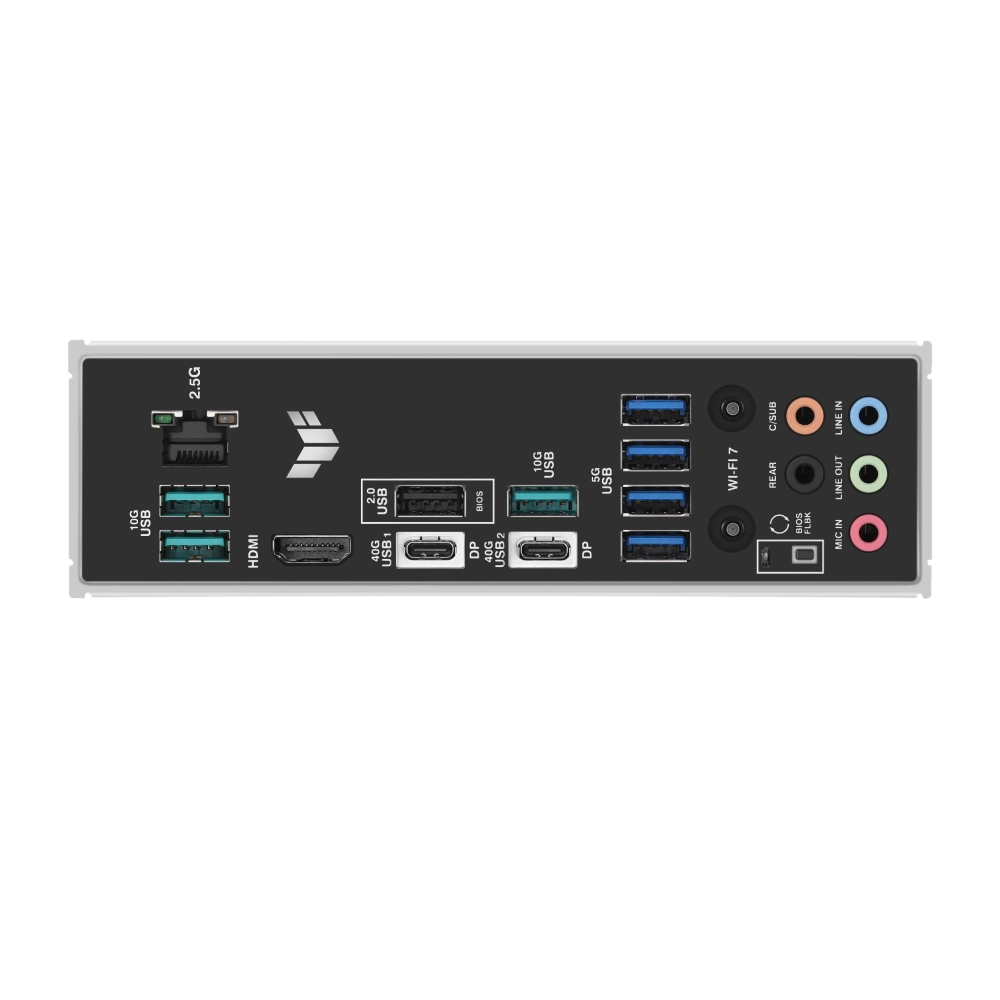

- Back Panel
- 2 x USB4 Type-C, 3 x USB 10Gbps, 4 x USB 5Gbps, 1 x USB 2.0, HDMI, LAN, Wi-Fi, 5 x Audio jacks, BIOS FlashBack™ button
