- Feature
- Description
- Model

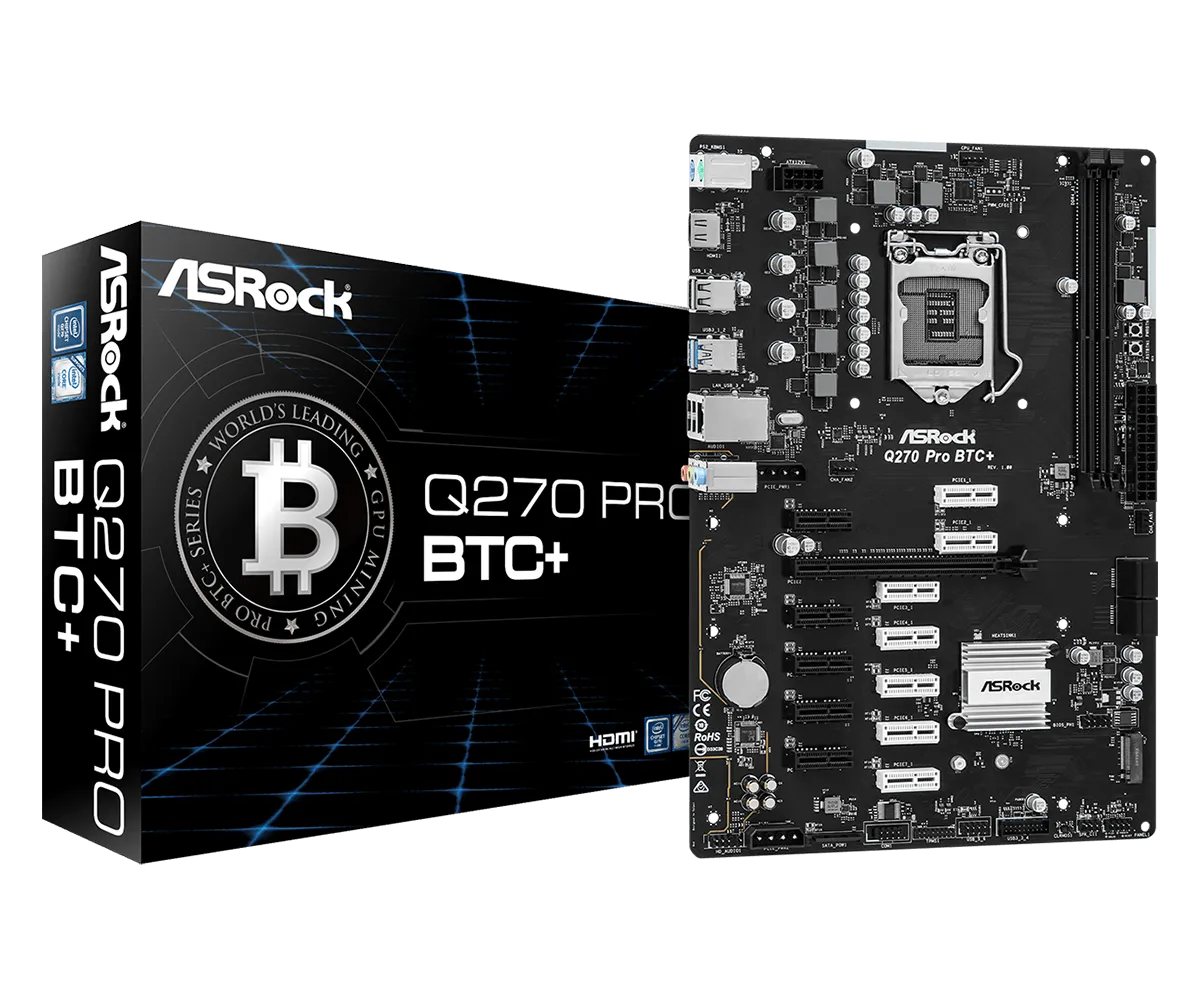

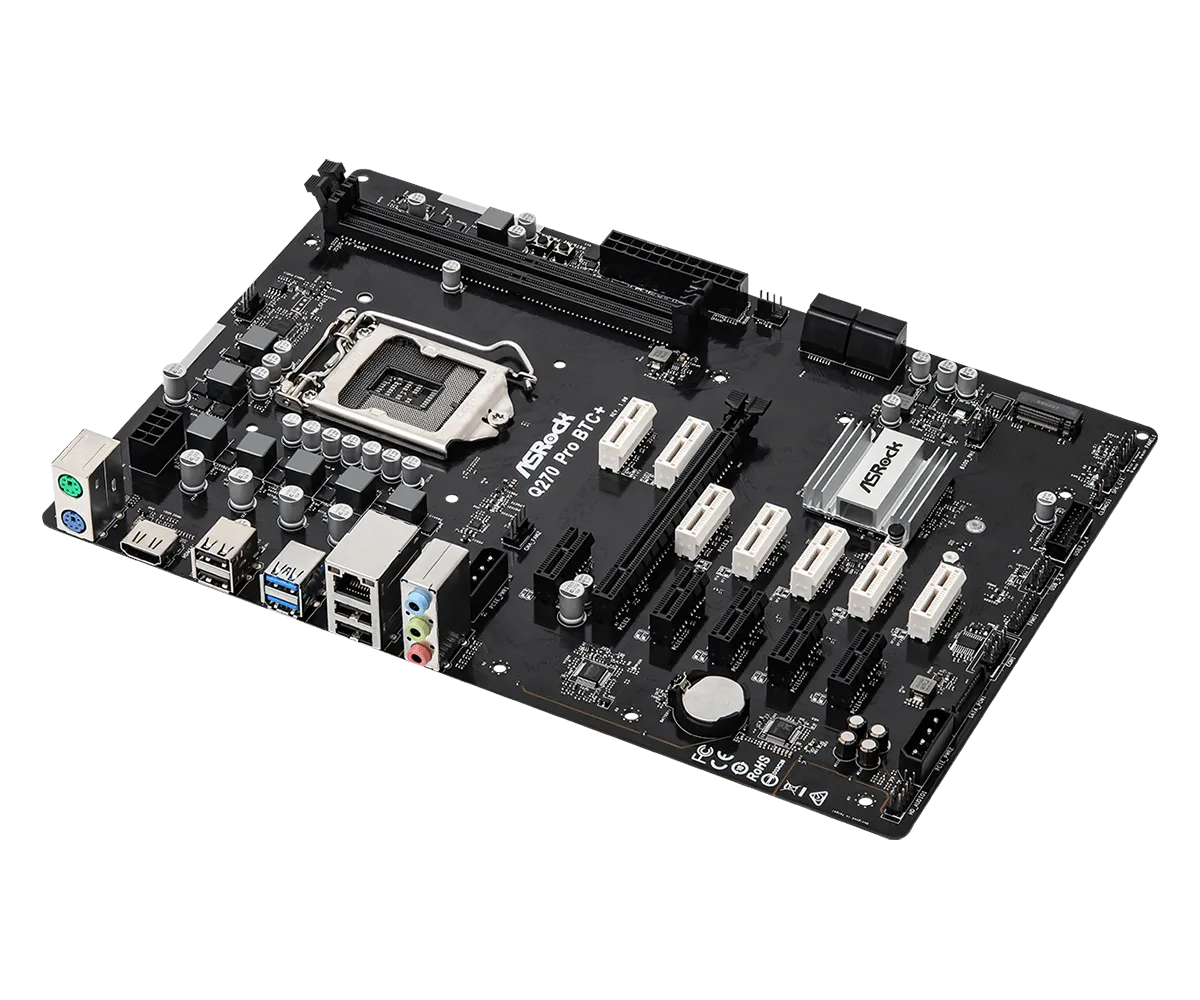

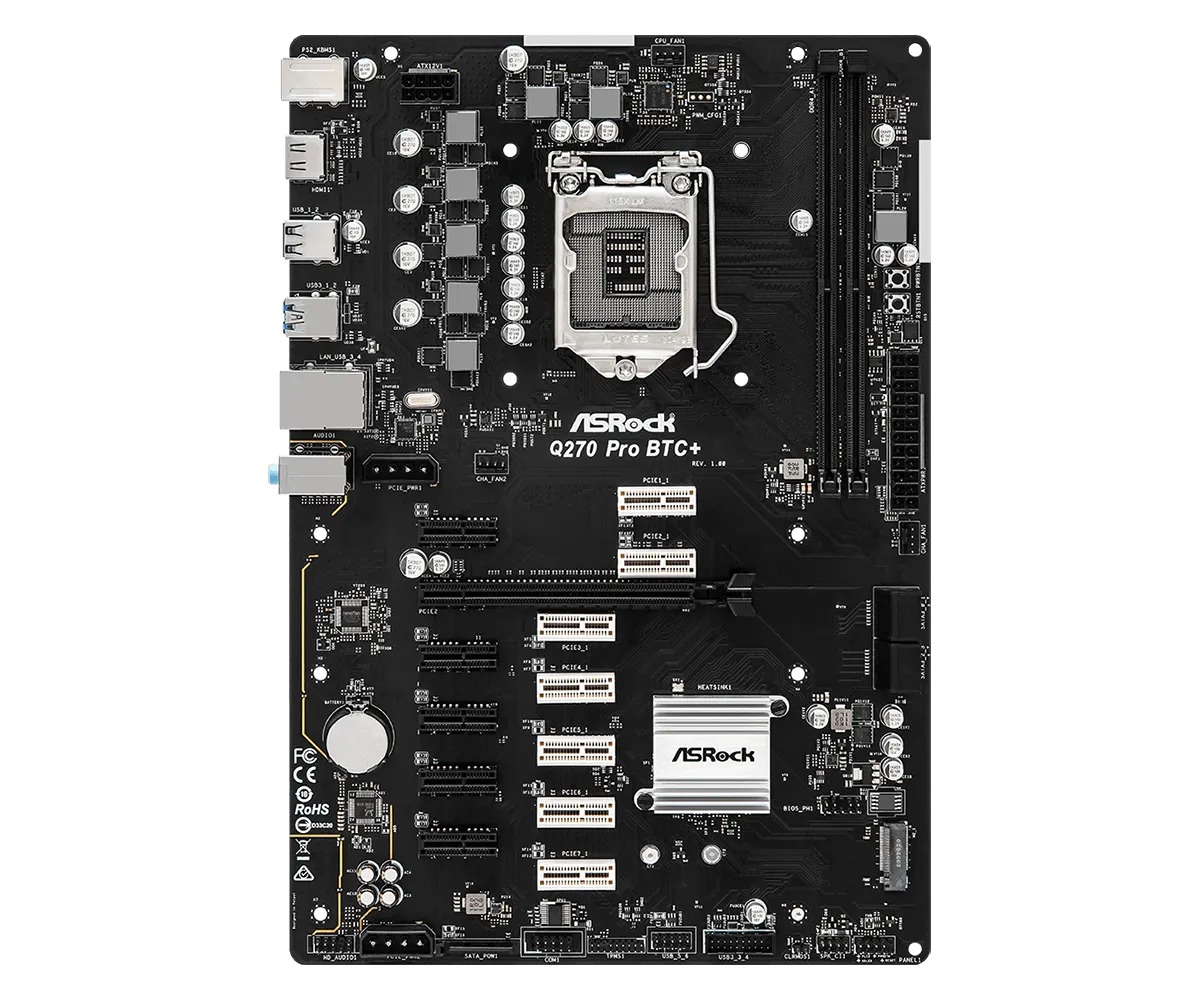

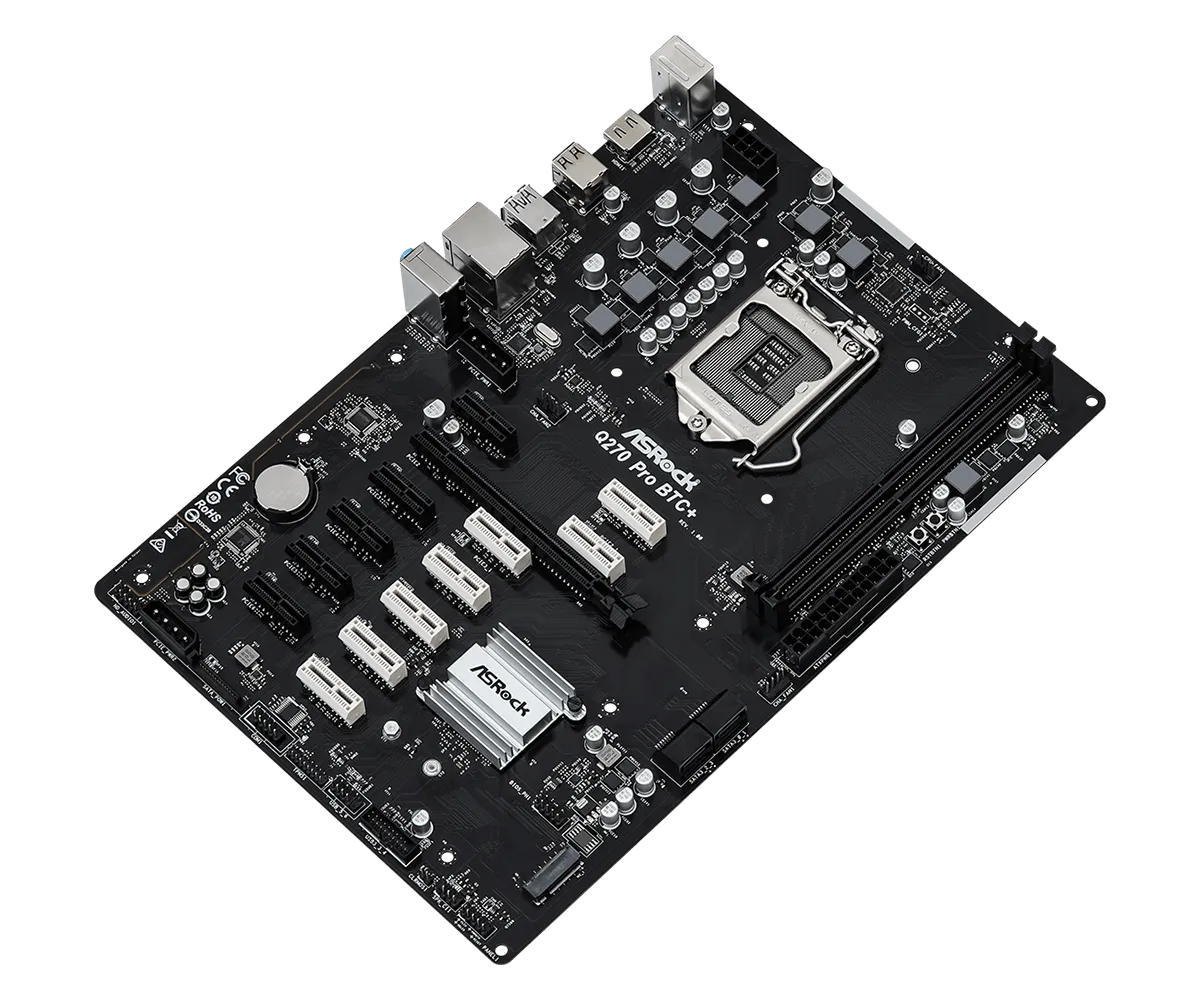

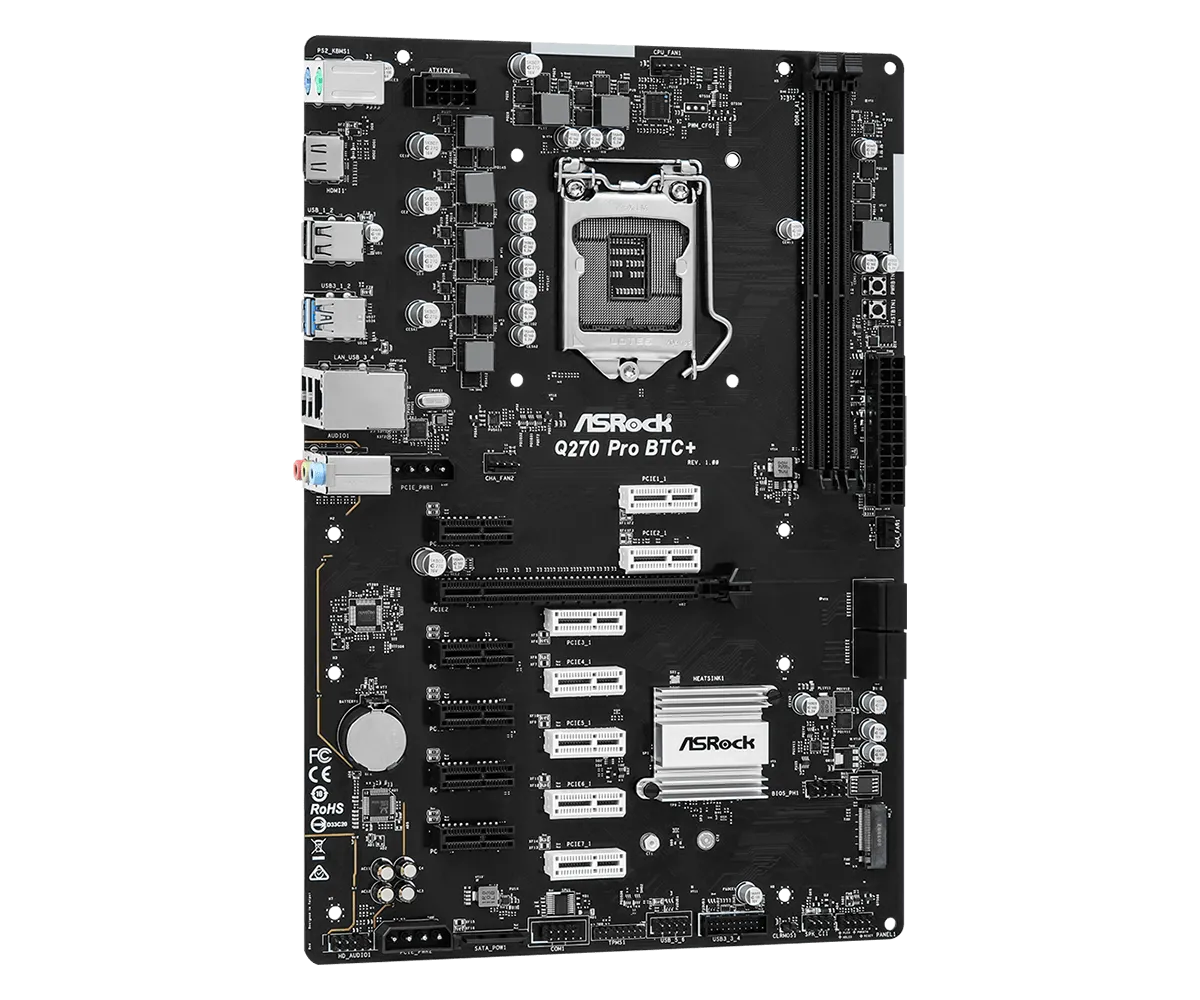

- ASRock Q270 Pro BTC+ Motherboard
- Socket / CPU Support
- LGA 1151, Supports 6th & 7th Gen Intel Core, Pentium, Celeron (up to 91W)
- Chipset
- Intel Q270
- Memory
- 2x DDR4 DIMM, up to 32GB, Dual Channel, XMP 2.0
- Graphics
- HDMI 1.4, up to 4K @ 24Hz (requires CPU with iGPU)
- Expansion Slots
- 1x PCIe 3.0 x16, 12x PCIe 3.0 x1
- Storage
- 4x SATA3 6Gb/s
- RAID Support
- RAID 0, 1, 5, 10 (SATA)
- Audio
- 7.1 CH HD Audio (Realtek ALC897)
- LAN
- Intel I219V Gigabit LAN
- USB Ports
- Rear: 4x USB 2.0, 2x USB 3.2 Gen1 | Internal: USB 2.0 & USB 3.2 Gen1 headers

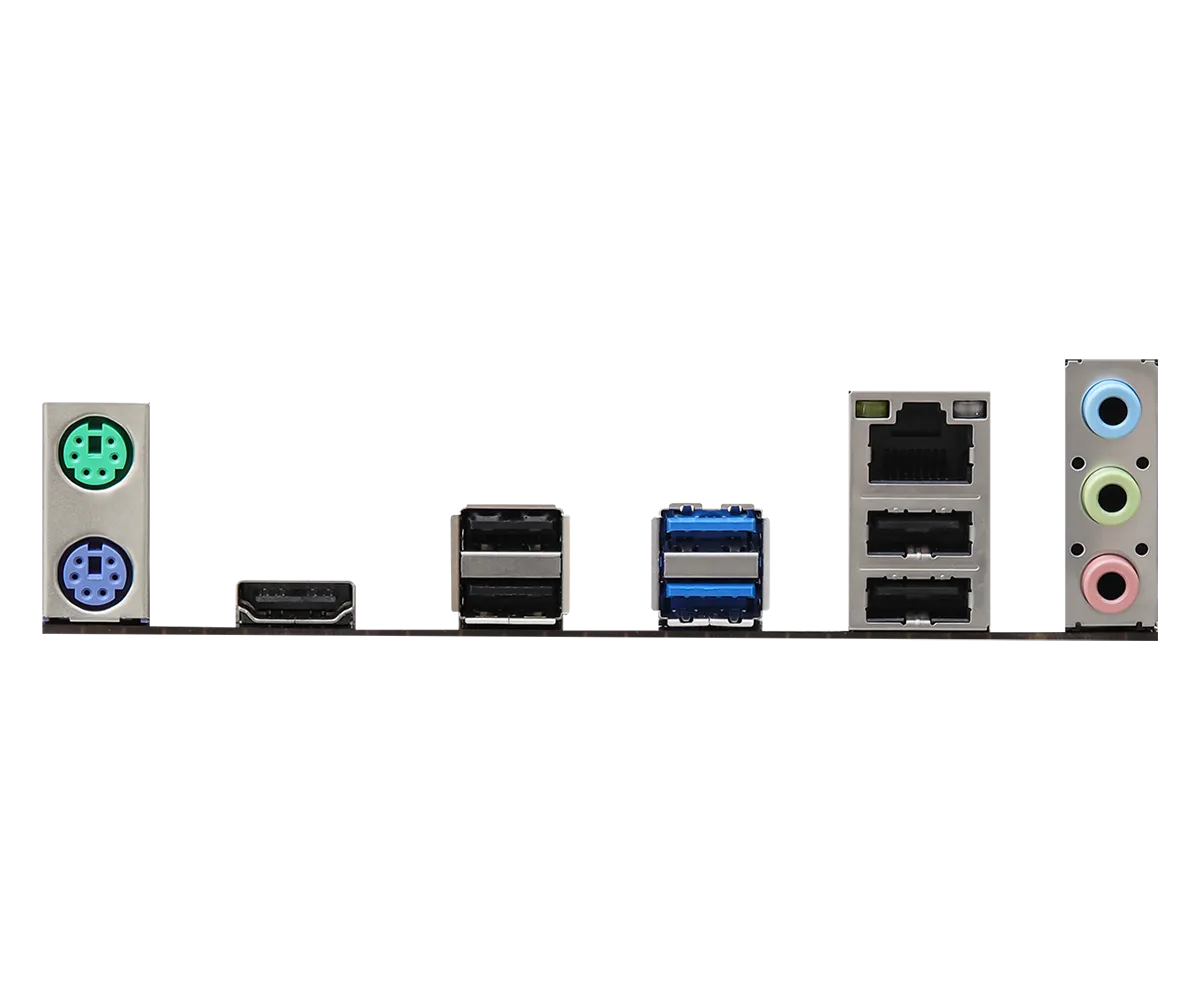

- Rear I/O
- PS/2 Mouse, PS/2 Keyboard, HDMI, 4x USB 2.0, 2x USB 3.2 Gen1, RJ-45 LAN, Audio Jacks
- Form Factor
- ATX, 30.5 x 20.8 cm
- Unique Features
- ASRock Super Alloy, Full Spike Protection, EZ mining design with 13 PCIe slots
