- Attribute
- Specification
- Model
- TS-464-8G
- CPU
- Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz
- CPU Architecture
- 64-bit x86
- Graphic Processors
- Intel® UHD Graphics
- Floating Point Unit
- Yes
- Encryption Engine
- AES-NI
- Hardware-accelerated Transcoding
- Yes
- System Memory
- 8 GB SODIMM DDR4 (1 x 8 GB) Since 2024/01
- Maximum Memory
- 16 GB (2 x 8 GB)
- Memory Slot
- 2 x SODIMM DDR4
- Flash Memory
- 4GB (Dual boot OS protection)
- Drive Bay
- 4 x 3.5-inch SATA 6Gb/s
- Drive Compatibility
- 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives HDD compatibility list

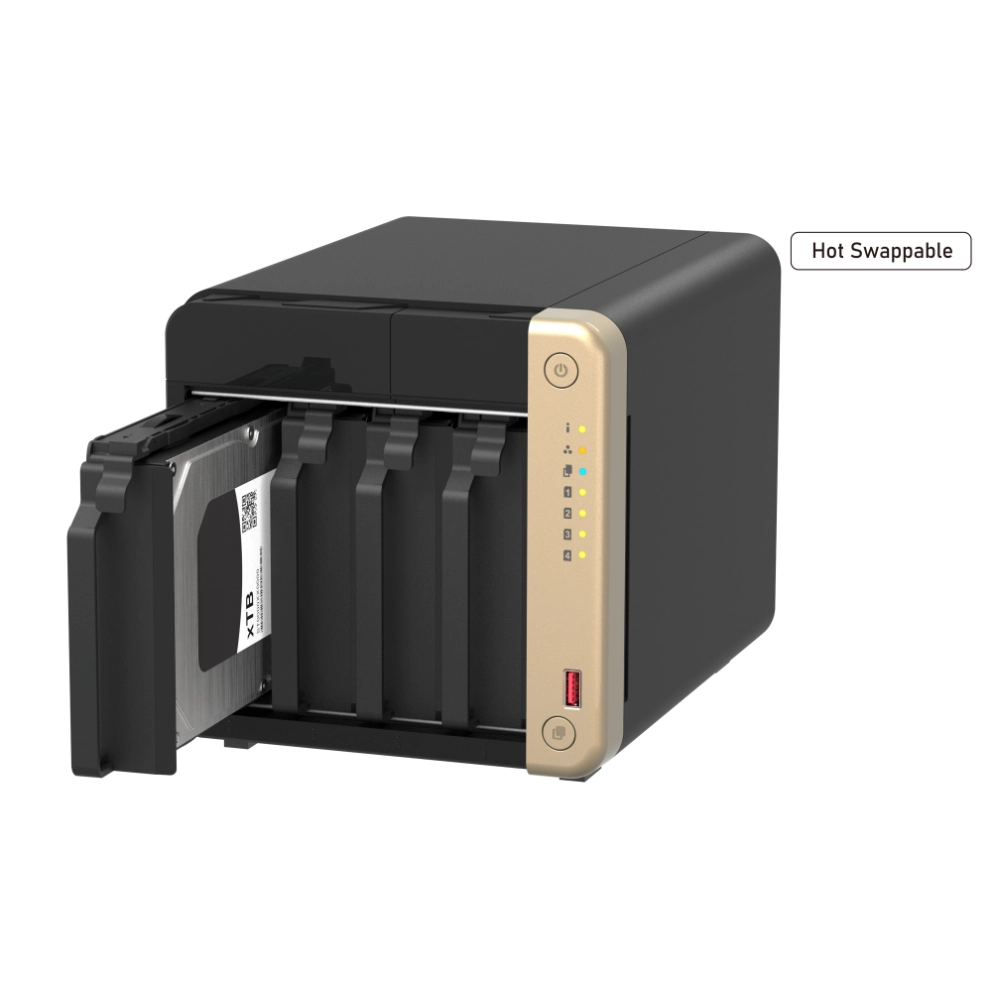

- Hot-swappable
- Yes
- M.2 Slot
- 2 x M.2 2280 PCIe Gen 3 x1 Compatible with NVMe SSD PCIe Gen 3 and above Compatibility list
- SSD Cache Acceleration Support
- Yes
- 2.5 Gigabit Ethernet Port
- 2 (2.5G/1G/100M/10M)
- 5 Gigabit Ethernet Port
- Optional via PCIe expansion card
- 10 Gigabit Ethernet Port
- Optional via PCIe expansion card
- Wake on LAN (WOL)
- Yes
- Jumbo Frame
- Yes
- PCIe Slot
- 1 (PCIe Gen 3 x2) Card dimensions: 190 x 68.9 x 18.76 mm / 7.48 x 2.71 x 0.74 inches
- USB 2.0 Port
- 2
- USB 3.2 Gen 2 Port
- 2 x Type-A
- IR Sensor
- Optional (QNAP RM-IR004 remote control)
- HDMI™ Output
- 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)
- Form Factor
- Tower
- LED Indicators
- Power/Status, LAN, USB, HDD1-4
- Buttons
- Power, USB Copy, Reset

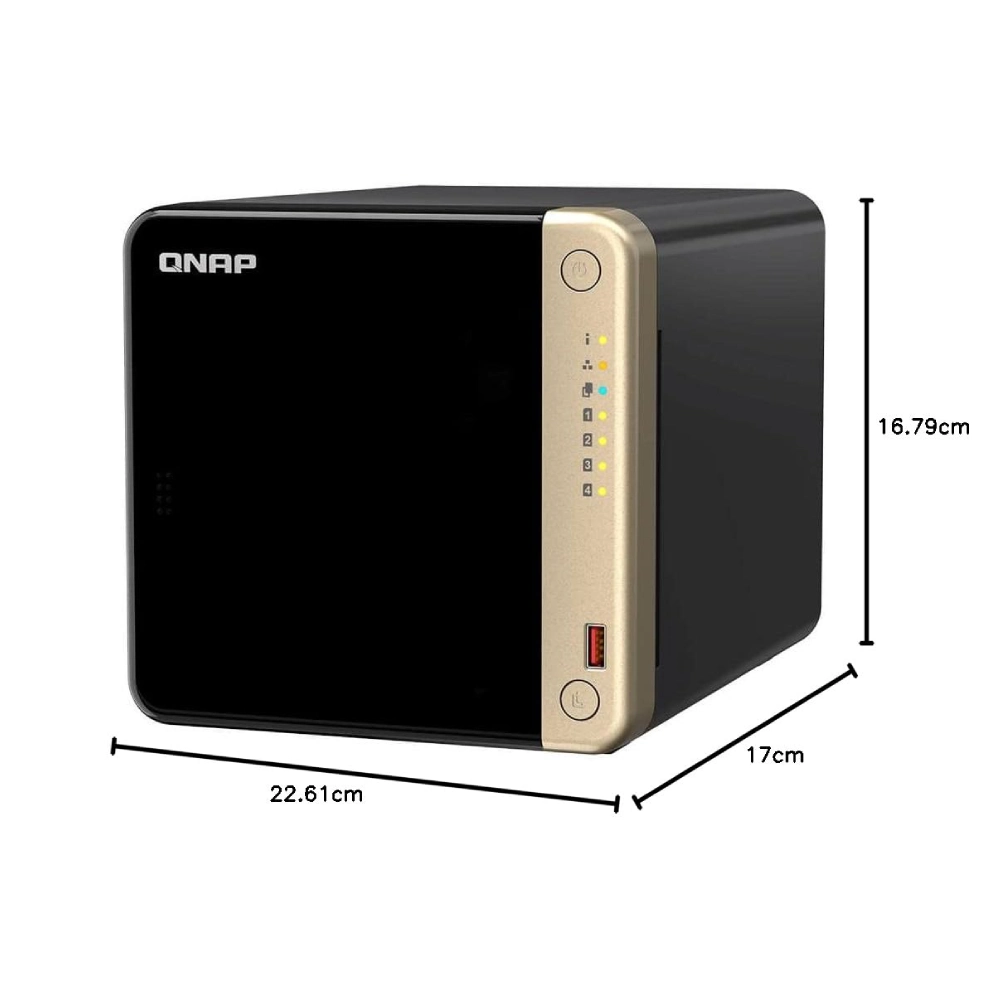

- Dimensions (HxWxD)
- 165 × 170 × 226.5 mm Dimensions do not include foot pad
- Weight (Net)
- 2.26 kg
- Weight (Gross)
- 3.59 kg
- Operating Temperature
- 0 - 40 °C (32°F - 104°F)
- Storage Temperature
- -20 - 70°C (-4°F - 158°F)
- Relative Humidity
- 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
- Power Supply Unit
- 90W adapter, 100-240V
- Power Consumption: HDD Sleep Mode
- 21.618 W
- Power Consumption: Operating Mode, Typical
- 40.536 W (Tested with drives fully populated)
- Fan
- 1 x 120mm, 12VDC
- System Warning
- Buzzer
- Kensington Security Slot
- Yes
- Standard Warranty
- 3 Years
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory
- 1500
