- Attribute
- Specification
- Model
- TS-433-4G
- CPU
- ARM 4-core Cortex-A55 2.0GHz processor
- CPU Architecture
- 64-bit ARM
- Graphic Processors
- Mali-G52
- Floating Point Unit
- -
- Encryption Engine
- -
- Hardware-accelerated Transcoding
- -
- Neural Processing Unit (NPU)
- -
- System Memory
- 4 GB on board (non-expandable)
- Note
- Reserves some RAM for use as shared graphics memory.
- Maximum Memory
- 4 GB on board (non-expandable)
- Flash Memory
- 4 GB (Dual boot OS protection)
- Drive Bay
- 4x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility
- 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
- Hot-swappable
- -
- Gigabit Ethernet Port (RJ45)
- 1
- 2.5 Gigabit Ethernet Port
- 1 (2.5G/1G/100M)
- Wake on LAN (WOL)
- -
- Jumbo Frame
- -
- USB 2.0 port
- 2
- USB 3.2 Gen 1 port
- 1
- Form Factor
- Tower
- LED Indicators
- System Status, LAN, USB, HDD1~4
- Buttons
- Power, Reset, USB Copy

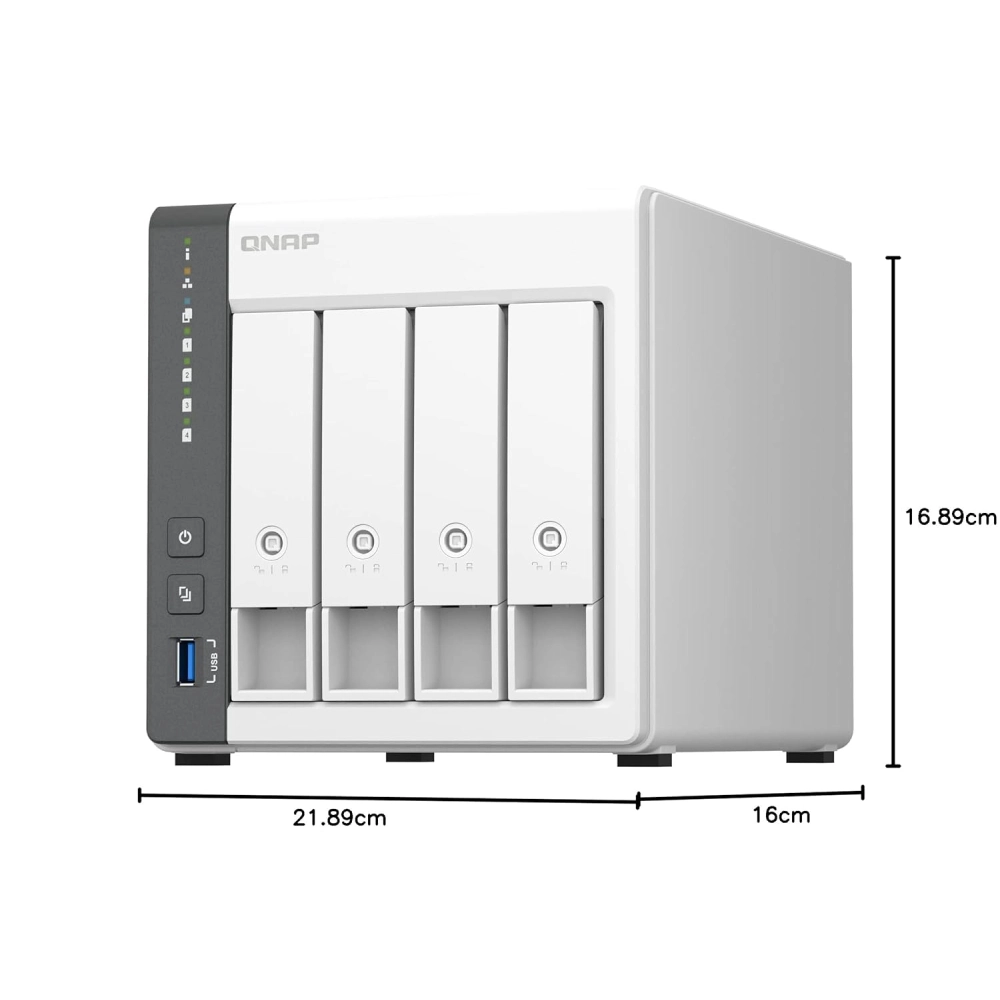

- Dimensions (HxWxD)
- 165 × 160.2 × 220.5 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
- Weight (Net)
- 2.07 kg
- Weight (Gross)
- 3.39 kg
- Operating Temperature
- 0 - 40 °C (32°F - 104°F)
- Storage Temperature
- -20 - 70°C (-4°F - 158°F)
- Relative Humidity
- 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
- Power Supply Unit
- Minimum 65W adapter (12VDC), 100-240VAC
- Power Consumption: HDD Sleep Mode
- 8.45 W
- Power Consumption: Operating Mode, Typical
- 22.54 W (Tested with drives fully populated)
- Fan
- 1 x 120mm, 12VDC
- System Warning
- Buzzer
- Kensington Security Slot
- -
- Standard Warranty
- 2 Years
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory
- 200
