- Specification
- Details (1TB Model)
- Form Factor
- M.2 (2280)
- Capacity
- 1TB
- Model Codes
- MZ-V9P1T0CW, MZ-V9P1T0GW
- Interface
- PCIe Gen 4.0 x4, NVMe 2.0
- Storage Memory
- Samsung V-NAND 3-bit TLC
- Controller
- Samsung in-house Controller
- Cache Memory
- Samsung 1GB Low Power DDR4 SDRAM
- Dimensions (WxHxD)
- 80.15 x 25 x 8.88 mm (with heatsink)
- Weight
- Max 28.0g
- Power Consumption (Avg / Max)
- Avg: 5.4W / Max: 7.8W (Burst Mode)
- Voltage
- 3.3 V ± 5%
- Operating Temperature
- 0 - 70 ℃
- Shock Resistance
- 1,500 G & 0.5 ms (Half sine)
- Reliability (MTBF)
- 1.5 Million Hours
- Encryption
- AES 256-bit, TCG/Opal, IEEE1667
- Warranty
- 5 years or 600 TBW (limited)

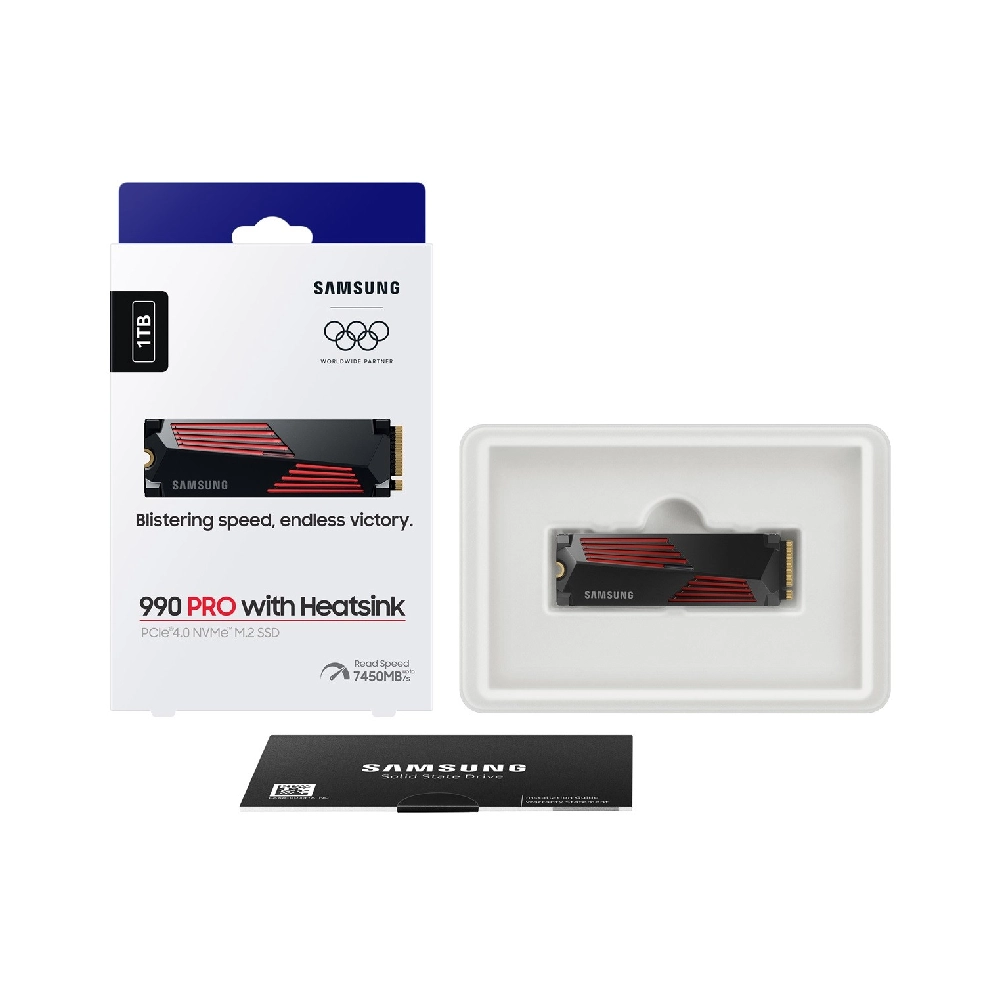

/MZ-V9P1T0CW(1TB)-new.webp)
